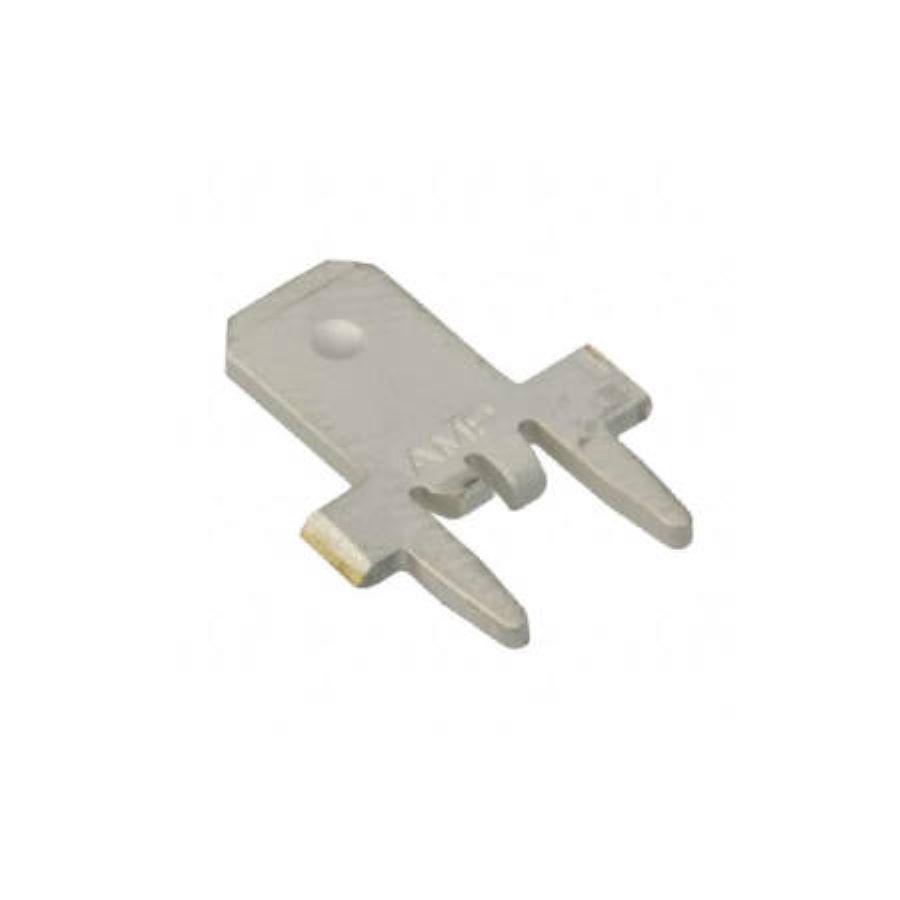

63860-1
Manufacturer:
TE Connectivity
Mfr.Part #:
63860-1
Datasheet:
Description:
Terminals Through Hole 12 AWG Male
| Parameter | Value |
|---|---|
| Length | 12.446 mm |
| Termination | Tab |
| Max Operating Temperature | 110 °C |
| Min Operating Temperature | -30 °C |
| Height | 8.64 mm |
| Material | Brass |
| Packaging | Reel |
| Depth | 7.92 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Type | PC Tab |
| Lifecycle Status | Production (Last Updated: 4 days ago) |
| Gender | Male |
| ELV | Compliant |
| Body Material | Brass |
| Tab Width | 4.7498 mm |
| Hole Diameter | 1.397 mm |
| Wire/Cable Gauge | 12 AWG |
| Insulation | Non-Insulated |
| Wire Gauge (Max) | 12 AWG |
| Wire Gauge (Min) | 16 AWG |
| Plating | Tin |
| Termination Style | Solder |
| Body Plating | Tin |
| PCB Thickness | 1.5748 mm |
| Plating Thickness | 3.81 µm |
| Underplate Material | Copper |
| Mating Tab Width | 4.75 mm |
| Tab Length | 6.35 mm |
| Tab Thickness | 812.8 µm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 4 days ago) |
| Stud Size | 4.75 mm x 0.81 mm |
Stock: 12360
Distributors
pcbx
pcbxUnit Price$0.56210
Ext.Price$0.56210
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.56210 | $0.56210 |
| 10 | $0.28105 | $2.81050 |
| 50 | $0.21619 | $10.80950 |
| 100 | $0.16630 | $16.63000 |
| 500 | $0.12792 | $63.96000 |
| 1000 | $0.09840 | $98.40000 |
| 3000 | $0.07569 | $227.07000 |
| 5000 | $0.05822 | $291.10000 |
| 10000 | $0.05822 | $582.20000 |
| 30000 | $0.05446 | $1633.80000 |
| 50000 | $0.05198 | $2599.00000 |
